DOM SMF Optical QSFP56 DD Transceiver Module 1310nm 30km Dual LC Connector
Product Details:
| Place of Origin: | China |
| Brand Name: | ColorOptic |
| Certification: | ROHS, CE |
| Model Number: | CO-QD4H13E4C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Seal trays and cartons |
| Delivery Time: | 5 DAYS |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 5000 pieces/month |
|
Detail Information |
|||
| Protocols:: | QSFP-DD MSA, IEEE 802.3bs 400GBASE-ER4 | Application: | 400G Ethernet, Data Center Interconnect |
|---|---|---|---|
| Label: | Can Be Customized | Distance: | 30Km |
| Temperature Range: | 0°C To 70°C | Data Rate: | 400G |
| Type Of Media: | SMF | Warranty: | 3 Years |
| Highlight: | Optical QSFP56 DD Transceiver,SMF QSFP56 DD Transceiver,DOM Transceiver 1310nm |
||
Product Description

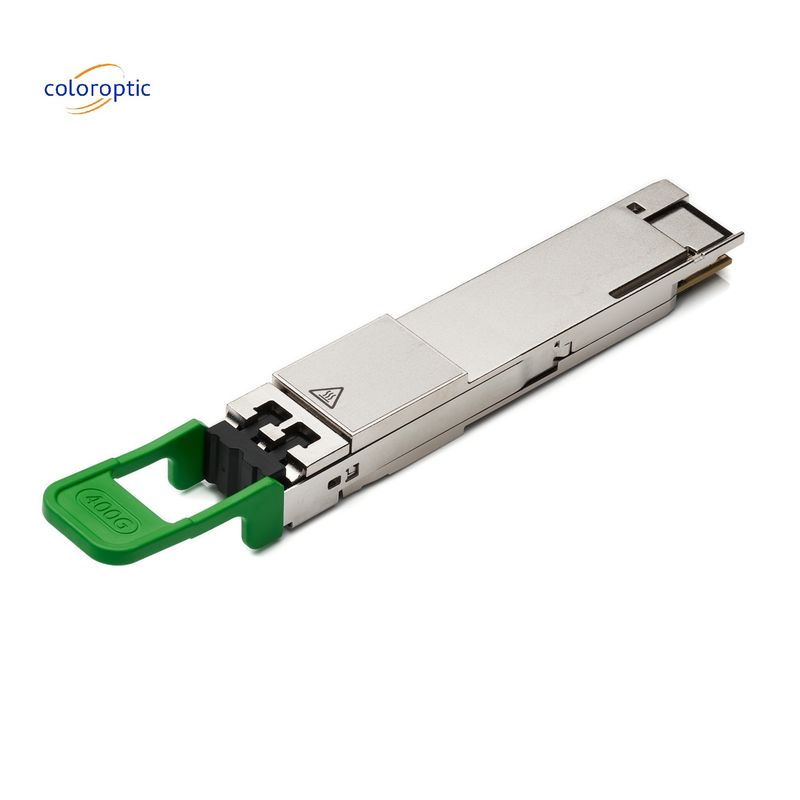

Juniper QDD-ER4 Lite Compatible 400GBase-ER4 QSFP56-DD 1310nm 30km DOM Dual LC SMF Optical Transceiver Module
Product Description:
The CO-QD4H13E4C Module is a 400Gb/s Quad Small Form Factor Pluggable-double density (QSFP56-DD) optical module designed for 30km optical communication applications. The module converts 8 channels of 50Gb/s (PAM4) electrical input data to 4 channels of parallel optical signals, each capable of 100Gb/s operation for an aggregate data rate of 400Gb/s. Reversely, on the receiver side, the module converts 4 channels of parallel optical signals of 100Gb/s each channel for an aggregate data rate of 400Gb/s into 8 channels of 50Gb/s (PAM4) electrical output data.

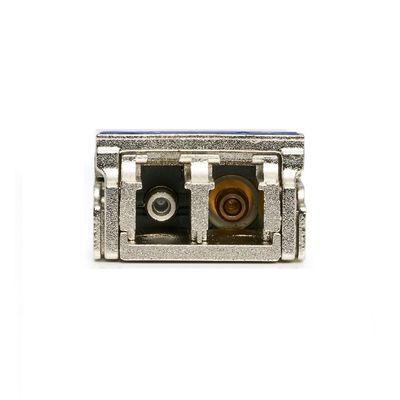

An optical fiber cable with an Dual LC connector can be plugged into the module receptacle. Proper alignment is ensured by the guide pins inside the receptacle. The cable usually cannot be twisted for proper channel to channel alignment. Electrical connection is achieved through a QSFP56-DD MSA-compliant edge type connector.
Features:
- QSFP-DD MSA compliant
- 4 LWDM lanes MUX/DEMUX design
- Up to 30km transmission on single mode fiber (SMF) with FEC
- Operating case temperature: 0 to 70oC
- 8x53.125Gb/s electrical interface (400GAUI-8)
- Data Rate 106.25Gbps (PAM4) per channel.
- Maximum power consumption 14W
- Duplex LC connector
- RoHS compliant
Technical Parameters:
| Attributes | Description |
|---|---|
| Warranty | 3 Years |
| Application | 400G Ethernet, Data Center Interconnect |
| Type of media | SMF |
| Temperature Range | 0°C To 70°C |
| Distance | 30km |
| Data Rate | 400G |
| Technology | Wavelength Division Optics |
| Label | Can Be Customized |
| Protocols | QSFP-DD MSA, IEEE 802.3bs 400GBASE-ER4 |
| Fiber Connector | Dual LC |
| Keywords | 400G QSFP DD Transceivers |
Applications:
• Data Center Interconnect
• 400G Ethernet
• Infiniband interconnects
• Enterprise networking
